Industrial piping systems routinely face extreme operational conditions. When fluids and gases reach extreme heat levels, standard equipment quickly degrades, leading to dangerous leaks and expensive facility downtime. Facilities must rely on specialized components designed specifically to withstand harsh thermal environments without losing their structural integrity or sealing capabilities.
Among the most critical components in these high-stress environments is the valve used to control or isolate the flow. While many valve designs exist, engineers often prefer ball valves for their quick quarter-turn operation and reliable shutoff capabilities. However, off-the-shelf options featuring standard plastic or elastomer seals will melt or deform when exposed to severe heat.
This requires a shift toward specialized engineering. Selecting the proper high temperature ball valves ensures that operations run smoothly, safely, and efficiently, even when internal temperatures exceed standard thresholds. Engineers must carefully evaluate materials, seat designs, and manufacturing processes before installing these critical pipeline components.
This guide explores the essential factors you need to consider when specifying valves for extreme heat applications. You will learn about the different material options, sealing mechanisms, and structural requirements necessary to keep your industrial systems functioning at peak performance.
Thermal stress affects piping components in several ways. As temperatures rise, metals expand. If a valve is not engineered to accommodate this thermal expansion, the internal ball can become trapped against the seats, making it impossible to operate. Conversely, uneven expansion can create gaps, allowing dangerous fluids or gases to escape down the line.
Standard soft seats, typically made from PTFE (Teflon), begin to break down and lose their mechanical strength as temperatures approach 400°F (204°C). For applications exceeding this limit, you must transition to a high temperature ball valve built with advanced materials and specialized metal-to-metal seating technologies.
The foundation of any high temp ball valve is the material used for its body and trim. The chosen alloy must maintain its tensile strength and resist oxidation at elevated temperatures.
Material Type | Maximum Temperature Range | Common Applications | Key Characteristics |
|---|---|---|---|
Carbon Steel (WCB) | Up to 800°F (426°C) | Steam lines, oil refineries | Cost-effective, good strength, vulnerable to corrosion |
Stainless Steel (CF8M) | Up to 1500°F (815°C) | Chemical processing, power generation | Excellent corrosion resistance, high durability |
Alloy 20 | Up to 1000°F (537°C) | Sulfuric acid applications | Highly resistant to stress corrosion cracking |
Inconel / Hastelloy | Up to 2000°F (1093°C) | Aerospace, severe chemical service | Premium alloys for the most extreme environments |
Selecting the right material requires a thorough understanding of the media flowing through the pipeline. An alloy might handle the heat perfectly but fail rapidly if exposed to a corrosive chemical.
The defining feature of high temperature ball valves is the seating material. Since traditional soft seats cannot survive the environment, manufacturers utilize metal-seated designs.
In a metal-seated valve, both the ball and the seats are constructed from durable alloys. To prevent the metals from galling (sticking together) and to ensure a tight seal, the surfaces undergo hardening treatments. Manufacturers often apply specialized coatings such as Chromium Carbide, Tungsten Carbide, or Stellite.
These coatings allow the ball to rotate smoothly against the metal seat even under immense thermal and physical pressure. They also provide exceptional resistance to abrasion, making metal-seated valves ideal for media containing solid particles or slurries.
While the primary sealing between the ball and the seat relies on hardened metals, other areas of the valve still require sealing. The stem packing and body gaskets typically utilize flexible graphite. Graphite maintains its integrity at extremely high temperatures and provides a reliable seal against fugitive emissions, ensuring the safety of plant personnel.

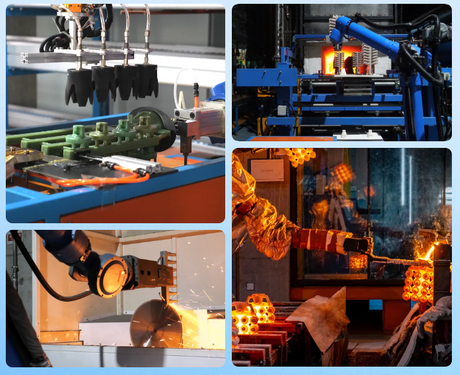

The outer shell of the valve must be robust enough to contain high-pressure media safely. Manufacturers use precise casting methods to create these vital components. Investment casting, for example, produces smooth surface finishes and accurate dimensions, which are essential for maintaining tight tolerances.
The structural integrity of the valve body is non-negotiable. When sourcing components for heavy-duty applications, engineers often review detailed schematics and consult with specialized foundries. For those looking to understand the manufacturing and sourcing of these heavy-duty components, exploring hydraulic valve body parts provides insight into the precision required for reliable industrial casting.
While industry standards vary, a valve is generally considered "high temperature" when it is designed to handle media exceeding 400°F (204°C). At this point, standard PTFE soft seats must be replaced with reinforced materials or metal seats to maintain a secure seal.
Yes. High heat often correlates with high pressure in industrial applications like steam generation. Manufacturers design these valves with heavy-wall castings and robust bolting to handle both thermal and pressure-related stresses simultaneously. Always verify the valve's pressure-temperature rating chart before installation.
Metal-seated valves are machined to extremely tight tolerances, often achieving Class V or Class VI shutoff standards. While they might not provide the absolute bubble-tight seal of a brand-new soft-seated valve, a properly lapped and coated metal seat offers exceptional sealing capabilities that are more than sufficient for most heavy industrial applications.
Maintenance schedules depend entirely on the severity of the application. High-cycle applications involving abrasive slurries at extreme heat will require more frequent inspections than a valve used infrequently for clean steam isolation. Routine checks of the graphite stem packing are highly recommended to prevent fugitive emissions.
Selecting the correct high temperature ball valve protects your infrastructure, minimizes the risk of hazardous leaks, and ensures your production processes remain online. By carefully matching the valve body materials, seating technology, and internal coatings to your specific pipeline conditions, you can achieve long-lasting reliability.
Review your current operational parameters, consult pressure-temperature charts, and work closely with reputable manufacturers to specify the exact components your facility requires. Upgrading to properly engineered metal-seated valves is a critical investment in the safety and efficiency of your plant.
