When you walk through a doorway or open a cabinet, you rarely think about the hardware making that movement possible. Yet, the hinges are the unsung heroes of construction, bearing the weight of doors and weathering the elements day in and day out. While many hinges look identical on the shelf, the material composition beneath the surface dictates whether that hardware will last for decades or corrode within months.
Stainless steel is the gold standard for durability in hardware, but it is not a one-size-fits-all solution. There are over 150 grades of stainless steel, each with unique chemical compositions designed for specific environments. Choosing the wrong grade for your project can lead to structural failure, unsightly rust stains, and expensive maintenance costs down the line.
Whether you are an architect designing a coastal property, a boat owner looking for reliable marine hardware, or a homeowner upgrading your kitchen, understanding metallurgy is key. This guide explores the specific grades used in manufacturing stainless steel door hinges and how to select the right one for your needs.
When browsing for hardware, you will most frequently encounter two main numbers: 304 and 316. These are austenitic stainless steels, known for their high formability and resistance to corrosion. However, their chemical makeups differ slightly, which creates a massive difference in performance.
Grade 304 is the most common form of stainless steel used around the world. It contains a high percentage of chromium and nickel, which protects the iron from rusting. It is an excellent general-purpose steel that resists oxidation from standard atmospheric conditions.
Grade 316 is considered the premium upgrade. It possesses all the properties of 304 but with one crucial addition: molybdenum. This chemical element drastically increases the metal's resistance to pitting and crevice corrosion, specifically in chloride-rich environments like salt water or de-icing salts.
Feature | Grade 304 Stainless Steel | Grade 316 Stainless Steel |
|---|---|---|
Primary Alloy Components | 18% Chromium, 8% Nickel | 16% Chromium, 10% Nickel, 2% Molybdenum |
Corrosion Resistance | Good (Standard Environments) | Excellent (High Chloride/Saline Environments) |
Cost | More Affordable | Higher Cost |
Common Use Case | Interior design, kitchens, inland exteriors | Marine hardware, coastal exteriors, laboratories |
For the vast majority of residential and commercial applications, Grade 304 is the ideal material. It offers a perfect balance of strength, aesthetic appeal, and cost-effectiveness. When you see stainless steel door hinges in a home, office, or school, they are likely made from Grade 304.
This grade is perfect for interior applications where humidity is controlled. It maintains its bright, polished finish with minimal maintenance. It is also suitable for outdoor use in areas that are not directly exposed to salt spray or harsh industrial chemicals. For example, a front door hinge on a house in a suburban, inland neighborhood will perform flawlessly with Grade 304 steel.
However, "stainless" does not mean "stain-proof." If Grade 304 hinges are used in a high-chloride environment—such as a swimming pool enclosure—they may eventually develop tea-staining, which is a superficial discoloration on the surface.
The ocean is one of the harshest environments on earth for metals. Saltwater spray is relentless and can eat through inferior metals quickly. This is where Grade 316 becomes non-negotiable.
Stainless steel boat hinges must withstand constant exposure to saltwater wetting and drying cycles. Without the molybdenum found in Grade 316, the microscopic protective layer on the steel would break down, leading to pitting. Pitting is dangerous because it creates small holes that penetrate deep into the metal, compromising the structural integrity of the hinge.
If you are outfitting a yacht, a dock, or a beachfront property, Grade 316 is essential. While the upfront cost is higher than 304, the investment pays off by preventing the need for frequent replacements. In the marine industry, using anything less than Grade 316 is generally considered a safety risk.
The grade of the steel tells you about corrosion resistance, but the manufacturing process and design determine the strength. Heavy duty stainless steel hinges are required for oversized doors, gates, or industrial machinery covers where the load-bearing requirements are high.
These hinges often utilize Grade 304 or 316, but they are manufactured differently. Rather than being stamped from thin sheets of metal, high-quality heavy-duty hinges are often produced using investment casting. This process allows for thicker, more robust designs with integral knuckles that cannot be pried open.
When selecting heavy-duty options, you should look for the following characteristics:
Thickness: Heavier gauge steel prevents the hinge leaves from bending under load.
Ball Bearings: These reduce friction, allowing heavy doors to operate smoothly and reducing wear on the metal knuckles.
Pin Construction: A hardened steel pin prevents the hinge from shearing off under stress.
Selecting the right hinge involves assessing the environment and the budget. To help you decide, we have broken down common scenarios and the recommended steel grade.
Environment / Application | Recommended Grade | Reason |
|---|---|---|
Kitchen Cabinetry | Grade 304 | Resists food acids and humidity; cost-effective. |
Boat Deck Hardware | Grade 316 | Essential for resisting saltwater pitting. |
Coastal Home Entry Door | Grade 316 | Prevents salt air corrosion and maintains aesthetics. |
Inland Office Door | Grade 304 | Sufficient durability for standard climate control. |
Chemical Plant Access Panel | Grade 316 | Molybdenum resists chemical corrosion. |
Heavy Industrial Gate | Heavy Duty 304/316 | Thicker casting required for load bearing. |
Beyond the chemical composition, the way a hinge is made matters. The two primary methods are stamping and casting.
Stamped hinges are cut and bent from a roll of steel. This is efficient for mass production of lightweight hinges. However, the bending process can introduce stress points in the metal.

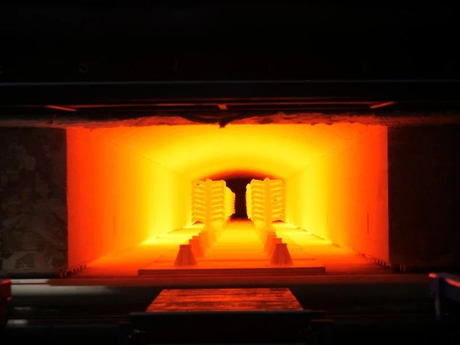

Investment casting, a method often used for premium construction hardware, involves pouring molten stainless steel into a ceramic mold. This creates a solid, uniform part with exceptional dimensional accuracy. Cast hinges are generally stronger and have a more substantial feel than their stamped counterparts. They allow for complex designs and thicker cross-sections, making them ideal for heavy-duty applications.
At HV Investment Casting, we specialize in high-precision casting techniques that ensure every piece of hardware meets rigorous standards for strength and durability.
The difference between a hinge that fails and one that lasts a lifetime often comes down to the microscopic elements inside the steel. By understanding the distinction between Grade 304 and Grade 316, you can ensure your doors, boats, and gates function smoothly for years to come.
Whether you need corrosion-resistant marine parts or robust architectural hardware, choosing the correct grade is the first step toward a successful build. If you have specific requirements for load capacity or environmental resistance, always consult with a manufacturer who can verify the metallurgy of their products.
