How to Measure a 90 Degree Elbow Pipe Fitting Correctly

Getting a pipe fitting measurement wrong might seem like a small mistake—until you're dealing with a leak, a misaligned system, or a costly replacement order. For anyone working with plumbing, industrial piping, or fluid systems, knowing how to measure a 90 degree elbow pipe fitting correctly is a foundational skill that saves time, money, and frustration.

A 90 degree elbow pipe fitting redirects flow at a right angle. Simple enough in theory. But measuring one accurately requires more than just holding a ruler up to the fitting. You need to understand the right dimensions to capture, the terminology used across manufacturers, and how different measurement methods apply to different fitting types.

This guide breaks it all down—step by step.

What Is a 90 Degree Elbow Pipe Fitting?

A 90 degree elbow pipe is a curved fitting that connects two sections of pipe at a 90-degree angle. It allows pipelines to change direction without sharp bends that could restrict flow or cause stress on the pipe wall.

These fittings are used in water supply lines, gas systems, HVAC installations, irrigation, and industrial fluid systems. They come in a wide range of materials—stainless steel, PVC, brass, copper, and carbon steel—each suited to different pressure ratings and environmental conditions.

There are two main types:

• Standard (long-radius) elbow: The curve spans a longer arc, reducing turbulence and pressure drop.

• Short-radius elbow: More compact, used where space is limited, though it creates slightly more flow resistance.

Knowing which type you have matters before you start measuring.

Key Dimensions You Need to Measure

When measuring a 90 degree fitting, there are several dimensions that come into play depending on your application. Here's a breakdown of the most important ones:

1. Nominal Pipe Size (NPS)

The nominal pipe size refers to the standardized size designation for the pipe the fitting connects to. It does not always match the actual inside diameter—it's a reference number used across the industry.

2. Inside Diameter (ID)

The inside diameter is the measurement of the inner bore of the fitting. This determines how much fluid can flow through it. Measured using calipers, the ID is taken at the opening of the fitting.

3. Outside Diameter (OD)

The outside diameter measures the full width of the fitting from one outer edge to the other. This is particularly important when the fitting needs to fit inside a sleeve, housing, or tight space.

4. Center-to-End Distance (C-E)

This is the most critical measurement for a 90 degree elbow pipe fitting. It's the distance from the center of the elbow's curve to the end of one opening (the face of the fitting). For a 90-degree elbow, you'll need to measure this on both legs of the fitting.

5. End-to-End Length

This measures the full length from one face of the fitting to the other face, passing through the curve. Useful when calculating total pipe run length.

6. Wall Thickness

Wall thickness affects pressure rating and material strength. It is measured using calipers or ultrasonic testing equipment.

Standard Dimensions Reference Table

The table below outlines typical center-to-end (C-E) dimensions for standard 90 degree elbow pipe fittings based on nominal pipe size (NPS). These values follow general industry standards and may vary slightly by manufacturer.

Note: These are general reference values. Always verify dimensions with your specific manufacturer's datasheet.

Tools You'll Need

Before taking measurements, gather the right tools:

Digital calipers are the most versatile tool here. For fittings smaller than 4 inches, they give you precise readings to the hundredth of a millimeter—far more reliable than a standard tape measure for small-bore components.

Step-by-Step: How to Measure a 90 Degree Elbow Pipe Fitting

Step 1: Identify the Fitting Type and Material

Before measuring, confirm whether your 90 degree fitting is threaded, socket-weld, butt-weld, or slip-fit. Each type has a slightly different measurement protocol. Also note the material—stainless steel, PVC, brass, or copper—as this affects relevant standards and tolerances.

Step 2: Measure the Outside Diameter

Place your calipers across the widest point of the fitting's opening. Record the outside diameter. Cross-reference this with a nominal pipe size chart to confirm the NPS designation.

Step 3: Measure the Inside Diameter

Insert the inner jaws of your calipers into the opening of the fitting. Expand them until they contact the interior walls. This gives you the ID, which confirms bore size and flow capacity.

Step 4: Determine the Center-to-End Distance

This step requires locating the center point of the elbow's arc. Here's how to do it:

1. Lay the fitting on a flat surface.

2. Use a straight edge to extend an imaginary line from one opening of the fitting to identify the centerline axis.

3. Find where the two centerline axes intersect—this is the center point of the elbow.

4. Measure from this center point to the face (end) of each opening.

For a symmetrical 90 degree elbow pipe, both measurements should be equal. If they differ, double-check your center point identification.

Step 5: Measure Wall Thickness

Open your calipers and position the outer jaws at the thickest point of the fitting's wall. This measurement helps confirm the pressure class and material schedule (such as Schedule 40 or Schedule 80).

Step 6: Check Thread Specifications (If Applicable)

For threaded fittings, use a thread gauge to determine the thread type (NPT, BSP, etc.) and thread pitch. Misidentifying thread specifications is one of the most common sources of fitting incompatibility.

Step 7: Record and Verify All Measurements

Compile your measurements in a simple table like the one below for easy reference and ordering.

Having all values recorded in one place reduces the risk of ordering errors, especially when sourcing fittings from suppliers or manufacturers.

Common Measurement Mistakes to Avoid

Even experienced technicians make errors when measuring pipe fittings. Here are the most common ones:

• Confusing NPS with actual diameter: The nominal size is a reference number, not the true measurement. A 1-inch NPS fitting does not have a 1-inch inside diameter.

• Measuring from the wrong reference point: Center-to-end distance must be measured from the geometric center of the elbow, not from the outer curve.

• Ignoring thermal expansion: In high-temperature applications, metal fittings expand. Factor this into your measurements when working with steam or high-pressure hot water systems.

• Skipping thread verification: A fitting that appears to match dimensionally may have an incompatible thread pitch. Always verify with a thread gauge.

• Using worn or uncalibrated tools: Calipers that haven't been zeroed or calibrated can introduce small but critical errors.

Material Comparison for 90 Degree Elbow Pipe Fittings

Choosing the right material for your 90 degree elbow pipe fitting depends on the fluid being transported, operating temperature, and pressure requirements. Here's a quick comparison:

Stainless steel 90 degree fittings are the most widely used across industrial and commercial applications due to their durability and resistance to corrosion. Both 304 and 316 stainless steel variants are commonly available from precision casting manufacturers.

Frequently Asked Questions

What is the difference between a long-radius and short-radius 90 degree elbow?

A long-radius elbow has a center-to-end distance equal to 1.5 times the nominal pipe diameter. A short-radius elbow has a center-to-end distance equal to the nominal pipe diameter. Long-radius elbows are preferred for most applications because they produce less turbulence and lower pressure drop.

How do I measure a 90 degree elbow pipe for replacement?

Start by measuring the outside diameter of the pipe the fitting connects to, then determine the nominal pipe size. Next, measure the center-to-end distance and wall thickness. If the fitting is threaded, record the thread type and pitch. These dimensions are enough to order an accurate replacement.

Can I use the same measurement method for PVC and metal fittings?

The measurement steps are the same, but tolerances may differ. PVC fittings often have slightly different nominal-to-actual size relationships than metal fittings, so always verify against the manufacturer's specifications.

What does "Schedule" mean for pipe fittings?

Schedule refers to the wall thickness of the fitting. Schedule 40 is standard weight, while Schedule 80 is heavier with a thicker wall, suited for higher pressure applications. The schedule designation affects the inside diameter of the fitting even when the outside diameter remains the same.

How accurate do my measurements need to be?

For most plumbing and general industrial applications, measurements to the nearest 0.01 inch (0.25 mm) are sufficient. High-pressure or precision fluid systems may require tighter tolerances, typically ±0.005 inches or less.

Get the Right Fitting for Your Project

Measuring a 90 degree elbow pipe fitting correctly comes down to knowing which dimensions matter, using the right tools, and avoiding the common errors that lead to mismatched components. The process is straightforward once you understand the terminology and follow a consistent method.

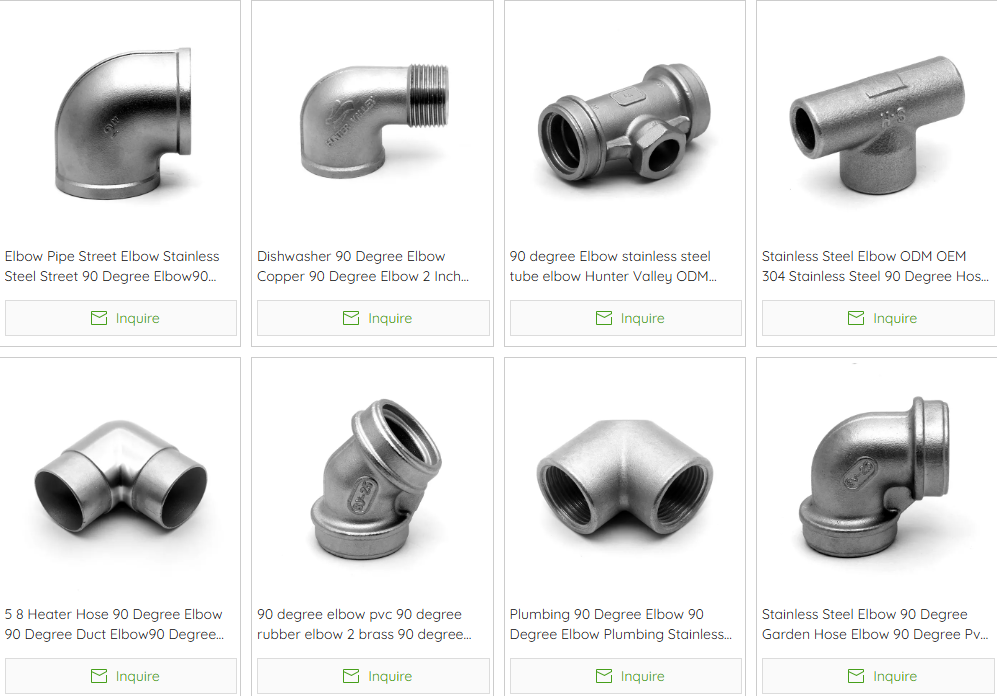

For high-quality 90 degree fittings in stainless steel, carbon steel, and alloy materials, explore the casting series from Hunter Valley Precision Casting. Their range includes OEM and ODM options for industrial, plumbing, and specialty applications—precision-made to meet exact dimensional requirements.
