The world of flow control lives and dies by the smallest details, and the valve body is where much of the magic happens. For engineers, manufacturers, and maintenance teams, understanding the valve body isn’t just beneficial—it’s essential for safety, efficiency, and cost control. Whether you’re optimizing an industrial plant or looking to improve a smaller mechanical system, knowing how valve bodies work gives you a crucial edge.
This post will break down everything you need to know about valve bodies, from the different types and materials to advanced selection tips and troubleshooting methods. You’ll walk away with actionable knowledge, tips for choosing the right valve body, and a new appreciation for one of engineering’s most underrated components.

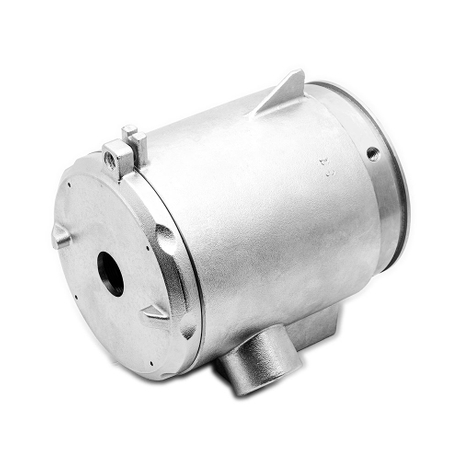

A valve body is the main housing that contains, supports, and aligns the internal parts of a valve. It acts as the pressure boundary and forms the essential interface between connected pipes or systems. But its role goes beyond mere containment. The design, size, and material of a valve body affect flow characteristics, longevity, chemical compatibility, and maintenance requirements.
□Valve Body: The outer shell and pressure boundary
□Bonnet: The closure for the opening in the valve body, sometimes forming part of the body itself
□Trim: Moving internal parts such as disk, seat, stem, and other components
□Actuator Interface: Where external control devices attach (manual, pneumatic, electric, or hydraulic actuators)
Different flow challenges require different solutions. Here’s a breakdown of popular valve body designs and where they excel.
Globe valves are famous for throttling and precision control in pipelines. Their spherical body houses a moveable plug that adjusts flow as needed. The globe shape naturally encourages a precise linear motion, making it a favorite for regulating applications and where tight shutoff is critical.
Use cases
□Water treatment plants
□HVAC systems
□Chemical dosing
Gate valves are designed for minimal pressure drop and straight flow when fully open. Their body holds a flat gate that lifts or drops to allow or block passage. They’re best in contexts where the valve spends most of its life either fully open or fully shut.
Use cases
□Main utility lines
□Oil & gas pipelines
□Isolation in water distribution
Ball valves feature a round or segmented body cradling a rotating sphere (the “ball”) with a bore through the center. Fast actuation and bubble-tight shutoff make them a go-to in many industries.
Use cases
□Chemical processing
□Food and beverage production
□Fire protection systems

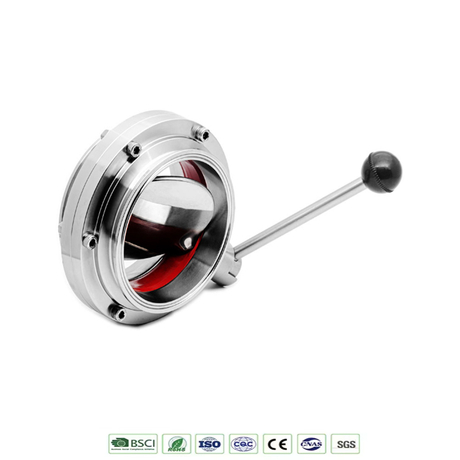

Slimline and efficient, butterfly valve bodies contain a rotating disc that regulates flow. They’re space-saving and perfect for larger diameter pipes needing low-pressure shutdowns.
Use cases
□Municipal water supply
□Irrigation systems
□Ventilation systems
Plug valves are compact and simple. The tapered or cylindrical plug rotates inside the body to align with the passage. They suit dirty or corrosive media thanks to their robust internals.
Use cases
□Slurry lines
□Wastewater treatment
□Chemical transfer
Selecting the best valve body is not just about matching flow rates. Several crucial factors impact both short-term results and long-term reliability.
Valve bodies come in a wide variety of materials, tailored to fluid properties and operating conditions:
□Cast iron and ductile iron (budget-friendly, non-corrosive duty)
□Carbon steel (general purpose, higher pressure/temperature resistance)
□Stainless steel (superior corrosion resistance, aggressive chemicals)
□Bronze/brass (marine and potable water)
□Superalloys (extreme temperatures and harsh chemicals)
Proper selection protects your system from corrosion, erosion, and mechanical stress, extending service life.
Every valve body is designed with a maximum pressure and temperature rating. These specs guard against leaks, failures, and catastrophic accidents. Sizing up all possible operating conditions—not just averages—is critical to ensure your choice holds strong over the long haul.
Valve body geometry determines velocity, turbulence, and pressure drop. For example, globe valve bodies excel at smooth throttling but create more resistance, while gate and ball valve bodies allow almost straight-through flow and minimal pressure drop.
Some valve bodies are easier to service than others. Consider accessibility to internal parts when selecting for critical areas or difficult installation spots.
Valve bodies are designed for durability, but real-world conditions often conspire to create issues. Here’s how to spot, prevent, and fix the most common difficulties.
Aggressive fluids or unsuitable materials can eat away at the valve body, leading to leaks and weakened structures. Combat this by:
□Ensuring chemical compatibility between fluid and valve body material
□Scheduling regular inspections, especially in known trouble spots
□Applying protective linings or coatings if necessary
Leaks often arise from worn seals, faulty installation, or cracking due to pressure spikes. Prevention steps include:
□Matching pressure/temperature ratings to real operational extremes
□Ensuring professional installation with correct torque and gasket procedures
□Using high-quality, certified replacement parts
Debris, chemical buildup, or thermal expansion can all cause sticking.
□Choose valve bodies with maintenance-friendly architecture
□Implement filtration or flushing procedures for dirty process lines
□Regularly lubricate and check actuator interfaces
The best valve body choice results from a holistic look at your system:
□Assess your process for pressure, temperature, and chemical exposure
□Map flow requirements and whether precise regulation or simple shutoff is needed
□Balance initial costs vs. lifecycle expenses (some materials and designs have higher upfront costs but lower maintenance bills)
□Prioritize ease of maintenance for critical or inaccessible areas
□Consult codes and standards (API, ASME, ISO, etc.) relevant to your sector
Material science breakthroughs and automation are reshaping valve body performance:
□Advanced composites and alloys offer lighter, tougher, and more corrosion-resistant solutions
□Smart valves with sensors housed in the body enable real-time condition monitoring and predictive maintenance
□Modular, service-friendly designs allow quick internal swaps and customization
Staying up to date on new technologies and best practices gives organizations a strategic advantage and helps avoid costly, legacy-system pitfalls.
Valve bodies may be unsung heroes of flow systems, but their impact on performance, safety, and cost cannot be overstated. By carefully matching the right type, material, and design features to your application, you lay the groundwork for efficient, long-lived operation and fewer headaches down the road.
If you’re planning an upgrade or want help diagnosing recurring issues with valve bodies, consider consulting with experts or suppliers who offer custom solutions and deep industry experience. Investing the time up front leads to safer, more reliable systems and long-term savings.
